FIS-AASS
FISolution

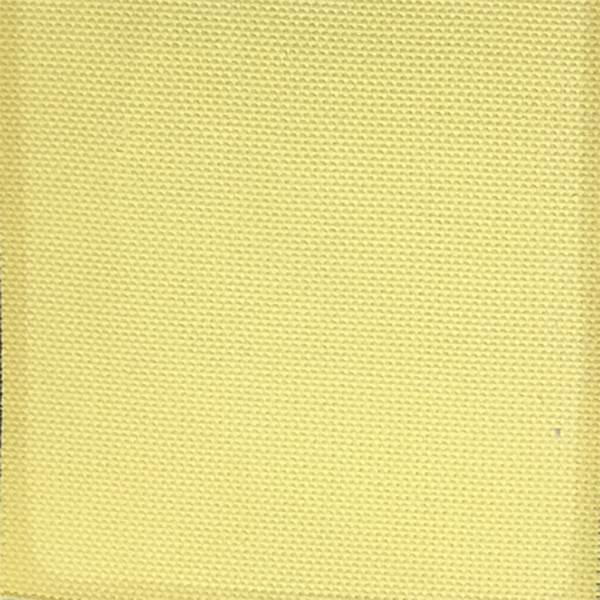

Aramide Air Slide
Air permeable fabrics are used in different industries and various fields of application.They are employed in equipment and plants with pneumatic conveyors for discharging or homogenizing powdered or granular bulk materials.
Air slide fabrics are used in different industries:
Power stations | filtered dust |
flue ash | |
discharging flue ash | |
coal dust | |
Building and Construction | cement |
furnace dust | |
gypsum | |
limestone | |
finely ground quartz | |
calcium hydroxide | |
lead monoxide | |
burnt lime | |
acid crystals | |
pure clay | |
phosphates | |
magnesite concentrate | |
finely ground fluorid | |
production of Aluminum | |
Chemical Industry | Thomas meal (fertilizer) |
rubber compounds | |
sinter dust | |
catalysts | |
sodium sulfate | |
wash powder | |
Foodstuff/Feed | flour products |
semolina feed | |
Surface coating | synthetic granulates |
powder coating |
Air slide fabrics are used in various kinds of machinery:
Silos/Tanks | discharging systems |
warehouse units | |
mixing equipment | |
homogenizing systems | |
Chute bottoms | conveyor systems |
ventilator systems | |
aeration systems | |
Vehicles | silo truck discharging cones |
railway wagon discharging cones | |
vessels aeration & discharging bottoms | |
container aeration & discharging bottoms | |
Powder coating machinery | bottoms for sinter basin |
Technical Data of Aramid air slide canvas (5mm):
Product Code | ESNMX-SP5 |
weight | 3200 gsm+/- 5% |
Thickness | 5mm+/-0.3mm |
Air permeability | 100 L/m2.s+/- 10% |
Elongation (Strength:2000N/2cm ) Warp weft |
3% 2.0% |
Working temperature | 204 ℃ – 240 ℃ |
Aramid air slide canvas (6mm)
Product Code | ESNMX-SP6 |
weight | 3800 gsm+/- 5% |
Thickness | 6mm+/-0.3mm |
Air permeability | 95 L/m2.s+/- 10% |
Elongation (Strength:2000N/2cm ) Warp weft |
3% 2.0% |
Working temperature | 204 ℃ – 240 ℃ |
Above data are the averages obtained from a series of typical by our lab and just for reference only.
