FIS-CFHS
FISolution

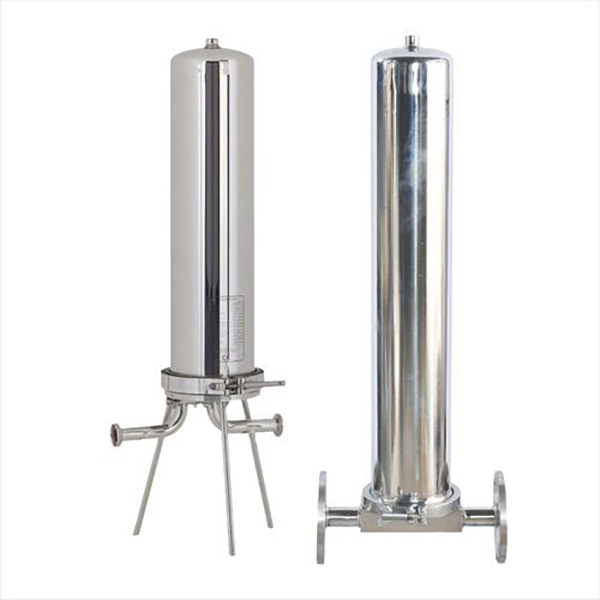

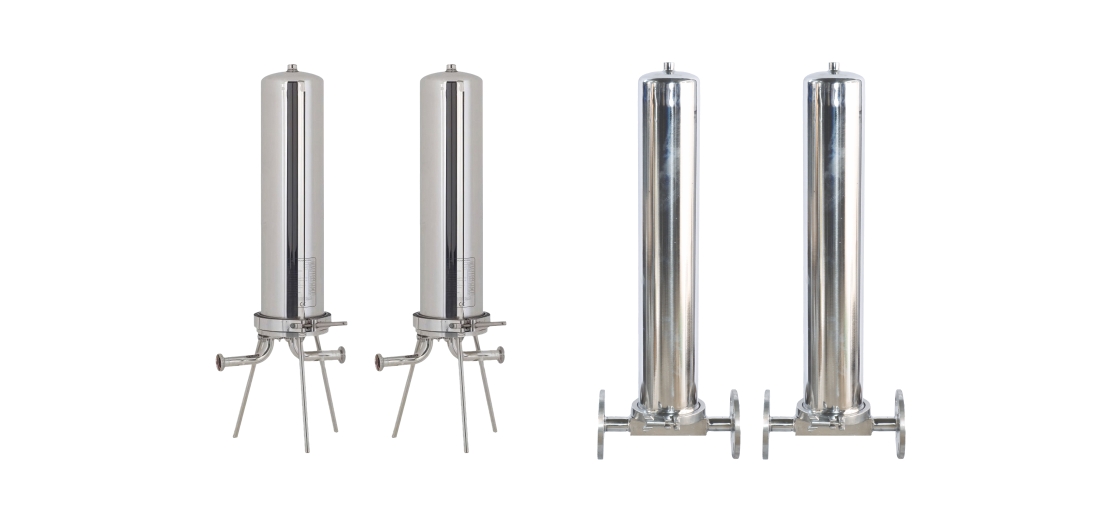

Industrial Cartridge Filter Housing
Features
• Welded construction and 304 and 316L stainless steel
• 10 bar (145 psi) pressure rating will handle the majority of flow and pressure conditions
• Quick no-tool clamp makes element change-outs a snap
• Rugged element mounting for simple pre-filtration to sub-micron removal
Benefits
• Stainless steel construction provides resistance against the majority of industrial fluids.
• Cost-effective pricing makes filtration possible in any place
• Compatible with most 2-1/2” cartridge filters for broad use
• Rigid element hold-low offers sealing integrity under a wide range of flow and contamination conditions
• Compact form makes the cartridge filter housings ideal for OEM or portable filtration applications
Technical Parameters
Based on your requirements, housings with 3 to 12 elements are available (equipment uses standard 2.5" cartridges of various connection types based on clients' requirements)
Stainless steel housings (SS304,316L)
Design pressure of 10bar
Application :
The cartridge filter housings are used in numerous filtration applications
• All Water Applications
• Oil & Refineries
• Membrane Pre-filtration
• Portable Filtration Equipment
• Processing & Manufacturing Processes
• General Water Filtration

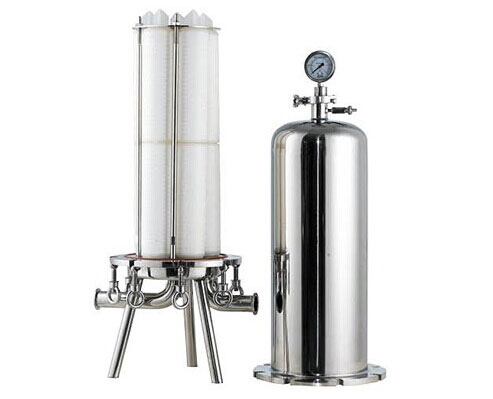

Sanitary Cartridge Filter Housing
Description
The Sanitary Cartridge Filter Housing offers dependable filtration for all applications where cleanliness is a must. The range includes models from 3 to 12 standard 2.5” cartridges with various end connections based on client requirements.
Features
• Proprietary element mounting plate makes full dis-assembly quick and easy
• “Seen to be clean” construction
• 10 bar (145 psi) pressure rating will handle the majority of flow and pressure conditions
• Robust cast clamp for safe and secure operation
Benefits
• Can be completely disassembled for easy, thorough cleaning
• All components can be clearly seen for assurance of cleanliness
• Polished to industry requirements
• Adjustable legs for flexible installation
Housing Material | Element Quantity | Element Length | Cartridge Connection Type | Housing Connection Type | Design Pressure | Inlet/Outlet Size | Seal Material |
S - SS316L | 1/ 3 / 5 / | 10" - 80" | 2, 3, 7, 8 | D - DIN | 10 - 10bar | 050-DN50 | B - BUNA N |
Application
The cartridge filter housing are specially designed based on the clients' requirements for various industries
• High Purity Water
• Beverages
• Beer Liquor
• Bio pharmaceuticals
