FIS-ASPMS
FISolution

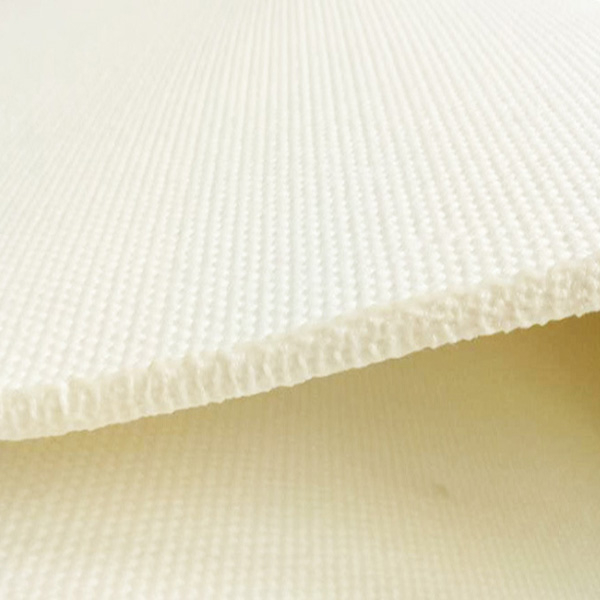

AIR SLIDE
Choose the specifications:250mm 270mm 480mm 580mm
the specifications between 10mm to 1600mm can be produced at any time according to user needs; more than 1600mm of special specifications to be agreed in advance.
Technical parameters of polyestermulti-filament air slide fabric:
Product name | polyestermulti-filament air slide | |
Weight | 4500 gsm+/- 5% | |
Thickness | 6mm+/-0.5mm | |
Air permeability | 90 L/m2.s+/- 10% | |
Elongation (Strength:2000N/2cm ) | Warp | 1.9% |
Weft | 0.9% | |
Working temperature | 160℃ | |
Number of layer | 4-5 | |
DIFFERENCE BETWEEN AIR SLIDE FABRIC OF MULTIFILAMENT TYPE AND STAPLE FIBER TYPE
These two kinds of air slide fabrics is very good distinction, polyester multi-filament yarn air slide fabric is more bright than polyester staple fiber air slide fabric. Polyester staple breathable cloth is commonly used in industry. Polyester multi-filament yarn air slide fabric is more wear-resistant and durable than ordinary polyester staple fiber air slide fabric, which meets higher requirements of customers.
FEATURES
1. Clear and smooth lines, stable size, without deformation.
2. Good air permeability, uniform and stable air flow.
3. Heat resistance, wear resistance, corrosion resistance, low moisture absorption.
4. Long service life, low energy consumption and minimal maintenance.
The production technology of polyester multi-filament yarn air slide fabric is different from that of polyester staple fiber air slide fabric, the production cycle to be a little longer. The requirements for equipment are higher and the investment is large, so polyester multi-filament yarn air slide fabric does not have a large range of manufacturers to produce in the market.
