FIS-ASFSP
FISolution

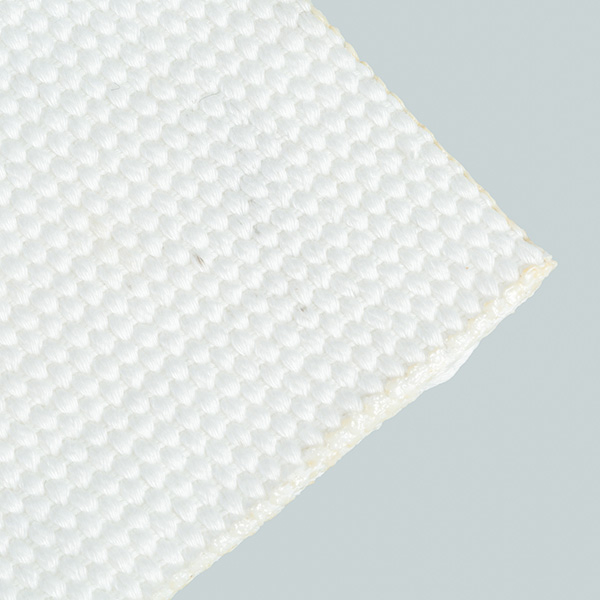

Our Air Slide Fabrics are available in 2 variants and it is woven in 2ply, 3ply, 4ply & 5ply construction in Spun Polyester Air Slide Fabric
Available width : 6” (150mm) to 65” (1650mm)
Standard thickness : 4mm, 4.8mm, 5mm, 6mm & 8mm
Construction : Solid Woven
Yarn : Polyester Spun
Other Name : Fluidising Fabric, Aeration Pad
Technical parameters of Spun polyester air slide fabric:
Product name | Polyester Spunair slide | |
Weight | 4000gsm+/- 5% | |
Thickness | 6mm+/-0.3mm | |
Air permeability | 85 L/m2.s+/- 10% | |
Elongation (Strength:2000N/2cm ) | Warp | 2.1% |
Weft | 1.0% | |
Working temperature | 160℃ | |
Number of plies | 5 | |
Depending on the customer‘s request, we can offer airslide fabrics made of different raw materials, in various grades of air permeability and thickness, depending on the application:
Power Stations : Filtered Dust, Flue Ash, Discharging Flue Ash, Coal Dust
Building and Construction : Cement, Furnace Dust, Gypsum, Limestone, Finely Ground Quartz, Calcium Hydroxide, Lead Monoxide, Quicklime, Acid Crystals, Pure Clay, Phosphates, Magnesite Concentrate, Finely Ground Fluoride, Production of Aluminum
Chemical Industry : Thomas Meal (Fertilizer), Rubber Compounds, Sinter Dust, Catalysts Sodium Sulfate, Soap Powder
Silos / Tanks : Discharging Systems, Warehouse Units, Mixing Equipment, Homogenizing Systems
Chute Bottoms : Conveyor Systems, Ventilator Systems, Aeration Systems
Vehicles : Silo Truck Discharging Cones, Railway Wagon Discharging Cones, Vessel Aeration & Discharging Bottoms, Container Aeration & Discharging Bottoms
