FIS-DSMBS
FISolution

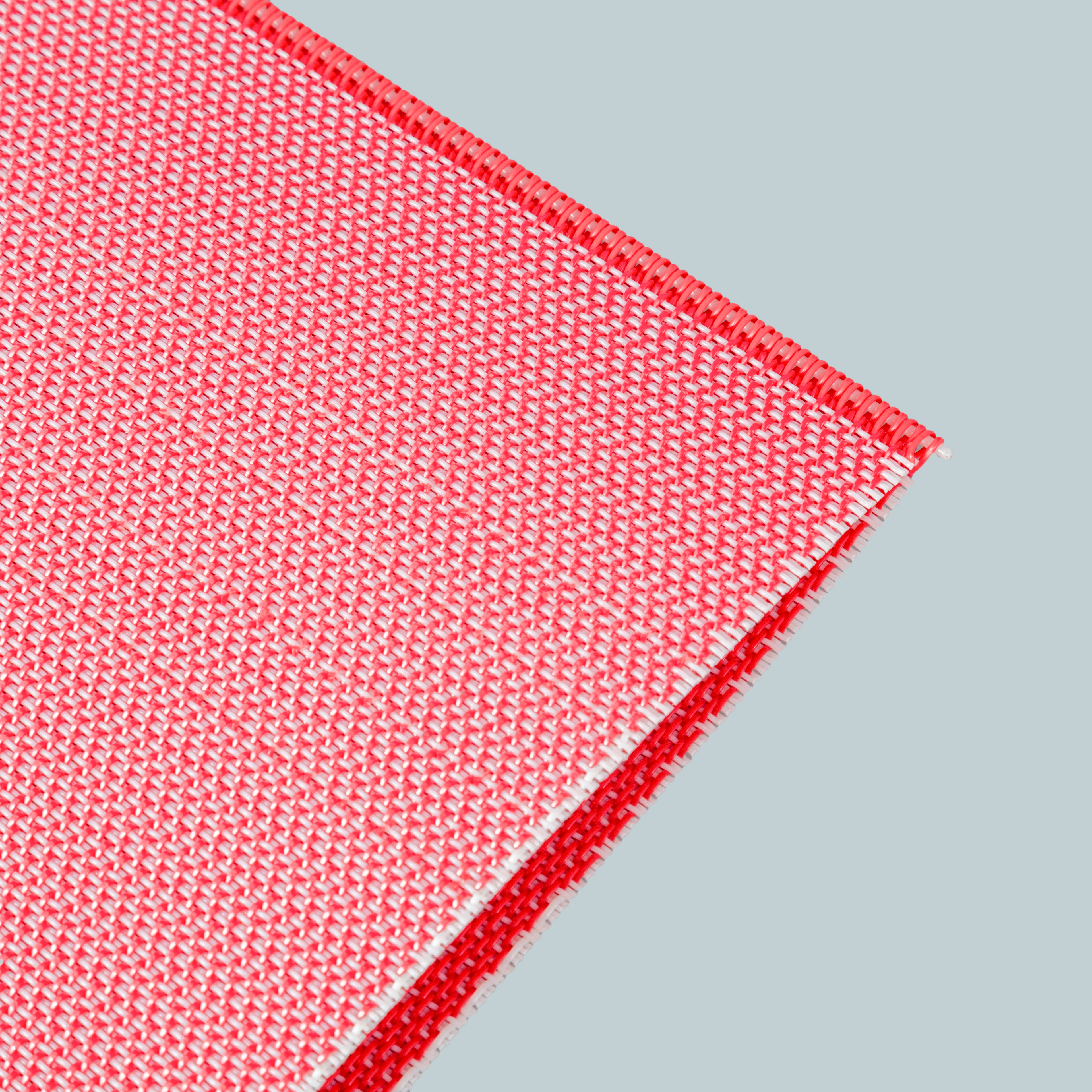

Dryer Screen Mesh Belt
According to the category, Dryer Screen Mesh Belt can be divided into one and a half layer dryer fabric, double layer dryer fabric, round yarn woven dryer fabric , flat yarn woven dryer fabric, double warp flat yarn woven dryer fabric.
Round yarn woven dryer fabric: its round yarn surface is smooth and stable with long life time, it is mainly produced all kinds of cultural paper, printing paper, writing paper, wrapping paper, cardboard paper ,corrugating medium, Also can be used on dryer section for other industry.
Flat yarn woven dryer fabric: it use rectangular cross-section of polyester yarn as warp and the line-frame of flat yarn is small and joint is long so the fabric surface is more smooth than round yarn woven dryer fabric, the paper mark is more light and more stable with longer life time.
Flat yarn woven dryer fabric and double warp flat yarn woven dryer fabric is suitable for the fore several dryer cylinder of the drying section, and they can produce all kinds of quality papers Suitable for medium and high speed paper making machine.

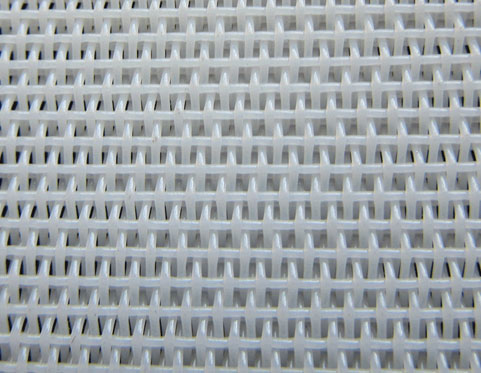

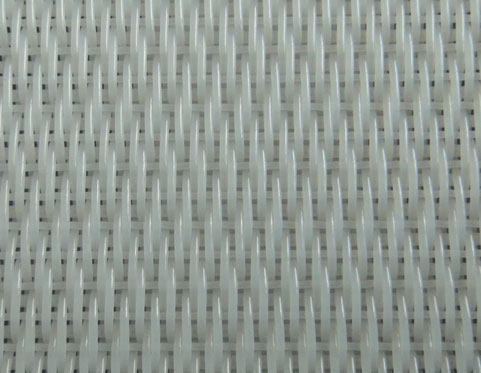

Polyester woven dryer fabric for 4106 Polyester woven dryer fabric for 22504

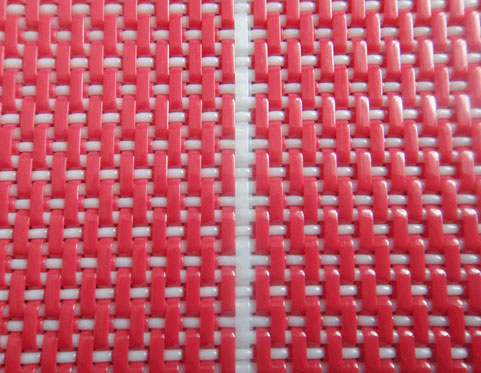

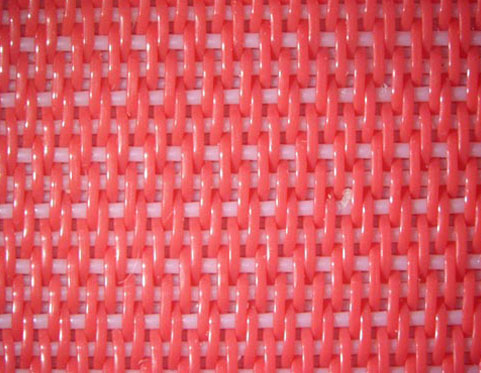

Polyester woven dryer fabric for 16904 Polyester woven dryer fabric for 4106-X
Technical Data Sheet
Weaving Series&Types | Model | Wire diameter (mm) | Density (wire/cm) | Strength(N/cm) | Permeability (m³/㎡h) | ||
Polyester woven dryer fabric | Warp | Weft | Warp | Weft | Area of the surface | ||
3-shed series dryer fabric | 22503 | 0.5 | 0.5 | 24 | 12 | ≥2000 | 8000 |
4-shed series dryer fabric | 22504 | 0.5 | 0.5 | 24 | 12 | ≥2000 | 12000 |
24504 | 0.5 | 0.5 | 26 | 12 | ≥2100 | 11000 | |
Round yarn dryer fabric | 4106 | 0.5 | 0.5 | 23 | 12.6 | ≥2200 | 6800 |
Flat yarn dryer Fabric | 15505 | 0.25X0.40 | 0.5 | 17 | 13.5 | ≥2000 | 6500 |
4106-K | 0.35X0.68 | 0.5 | 19.6 | 15.7 | ≥2200 | 5500 | |
18688 | 0.30X0.58 | 0.35/0.68 | 20 | 18.5 | ≥2000 | 1600 | |
16904 | 0.29X1.06 | 0.90/0.98 | 15.2 | 8.6 | ≥2600 | 1920 | |
