| Material: | |
|---|---|
| Wire diameter (mm): | |
| Strength(N/cm): | |
| Permeability (m³/㎡h): | |
FIS-SDFS
FISolution
Detail description

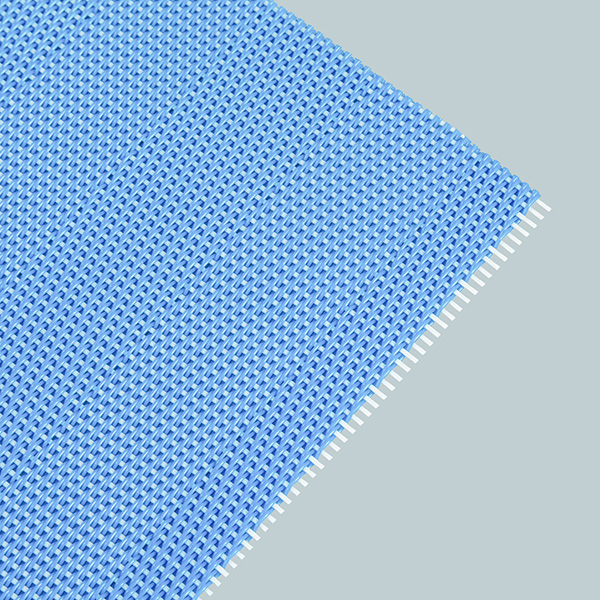

Sludge Dehydration Fabrics are also called Press- Filter Fabrics which is mainly used for sludge dehydration, pulp press in paper mill, juice squeeze, chemical industry, washing-separation coal ,smelting industry, mine tailings drying and other pressure filtration industries.
Sludge Dehydration Fabrics have the characteristics of good water permeability, air permeability and non-revealed sludge, acid-resisting and alkali-resisting. Because of their designing structure, the sludge can be peel off easily from the filter cake, so the screen are easily cleaned and have a long working time. Mainly matching with belt type filter press, vacuum rubber belt filter and vacuum horizontal belt filter.
Product performance:
Produced by imported woven machine , the fabrics have great stability and strength.
Acid-resisting, alkali-resisting,, wear resistant ,high temperature-resisting, long life time.
Raw material of special polyester and woven structure, the fabric surface is smooth so that slag discharge and recycling.
The fabric has large tensile strength and strong wrinkle resistance, not transformative, no deviation.
The joint gluing of fabric is well-made and use imported latex, not easy fall off.
151105 PET 24908
27708 2470
31505 151105PA/PET
Technical Data Sheet
Model of Fabrics | Wire diameter (mm) | Density (wire/cm) | Strength(N/cm) | Permeability (m³/㎡h) | ||
Warp | Weft | Warp | Weft | Area of the surface | ||
16903 | 0.70 | 0.90 | 16.3 | 5 | ≥2200 | 7520 |
22903 | 0.50 | 0.90 | 23 | 5.5 | ≥2000 | 8480 |
26808 | 0.50 | 0.80 | 27 | 8.5 | ≥2100 | 5120 |
15905 | 0.90 | 0.90 | 15.3 | 5 | ≥4500 | 7840 |
151105 | 0.90 | 1.10 | 15.3 | 6.3 | ≥5000 | 9280 |
121104 | 0.90 | 1.10 | 12.8 | 4.0 | ≥3600 | 9600 |
Detail description
Sludge Dehydration Fabrics are also called Press- Filter Fabrics which is mainly used for sludge dehydration, pulp press in paper mill, juice squeeze, chemical industry, washing-separation coal ,smelting industry, mine tailings drying and other pressure filtration industries.
Sludge Dehydration Fabrics have the characteristics of good water permeability, air permeability and non-revealed sludge, acid-resisting and alkali-resisting. Because of their designing structure, the sludge can be peel off easily from the filter cake, so the screen are easily cleaned and have a long working time. Mainly matching with belt type filter press, vacuum rubber belt filter and vacuum horizontal belt filter.
Product performance:
Produced by imported woven machine , the fabrics have great stability and strength.
Acid-resisting, alkali-resisting,, wear resistant ,high temperature-resisting, long life time.
Raw material of special polyester and woven structure, the fabric surface is smooth so that slag discharge and recycling.
The fabric has large tensile strength and strong wrinkle resistance, not transformative, no deviation.
The joint gluing of fabric is well-made and use imported latex, not easy fall off.
151105 PET 24908
27708 2470
31505 151105PA/PET
Technical Data Sheet
Model of Fabrics | Wire diameter (mm) | Density (wire/cm) | Strength(N/cm) | Permeability (m³/㎡h) | ||
Warp | Weft | Warp | Weft | Area of the surface | ||
16903 | 0.70 | 0.90 | 16.3 | 5 | ≥2200 | 7520 |
22903 | 0.50 | 0.90 | 23 | 5.5 | ≥2000 | 8480 |
26808 | 0.50 | 0.80 | 27 | 8.5 | ≥2100 | 5120 |
15905 | 0.90 | 0.90 | 15.3 | 5 | ≥4500 | 7840 |
151105 | 0.90 | 1.10 | 15.3 | 6.3 | ≥5000 | 9280 |
121104 | 0.90 | 1.10 | 12.8 | 4.0 | ≥3600 | 9600 |
