FIS-PPFS
FISolution

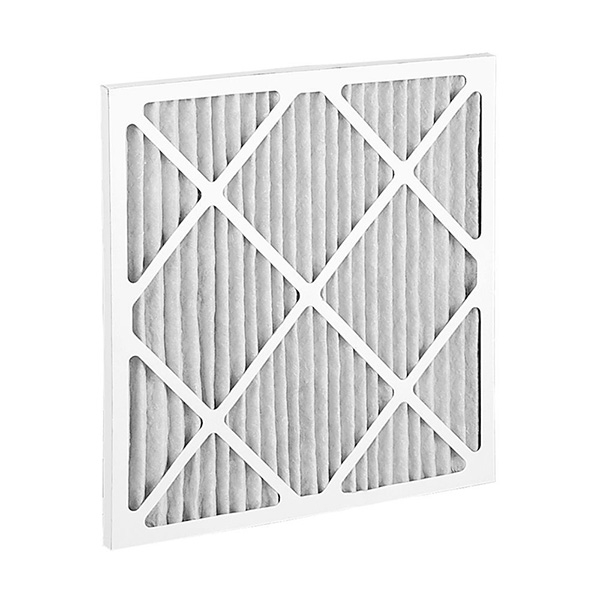

Pleat Panel Filter

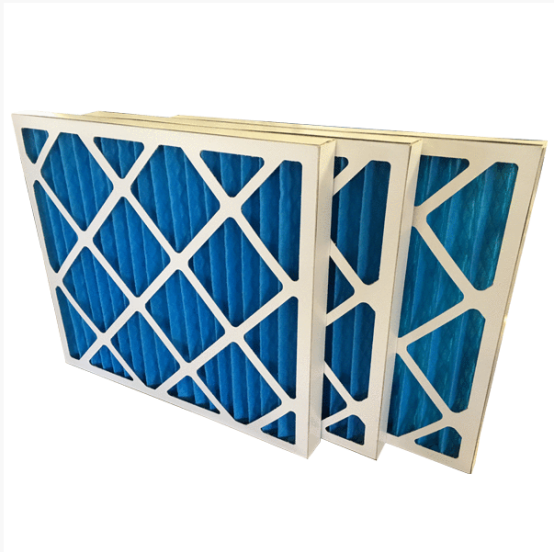

G4 Pleated Panel Filter
Disposable Panel Air Filter
Acts as a first stage filter offering G4 grade filtration
Rigid, Moisture Resistant Card Frame
Food Safe Air Filter
Extended Surface
Large Dust Holding Capacity
Energy Efficient
Available in Metal Facia Cap scrap or Cardboard Lattice
Metal Framed Pleated Panel Filter available for high humidity applications.
Applications
The Pleated Panel Air Filter is a medium efficiency disposable air filter, suitable for ventilation and air conditioning systems which require a higher efficiency and greater dust holding capacity than can be achieved with glass or synthetic panels.
The G4 Pleated Panel Air Filter can be used where glass panels are undesirable, such as in the food industry and hospitals.
Typically G4 Pleated Panel Air Filters are used as pre-filters on supply air systems to High Performance Bag Filters, or to protect heating or cooling coils from dust build up which leads to system inefficiency. Another common place to see a G4 Pleated Panel Air Filter is to protect fans in extract systems for office blocks or kitchen extract systems.
Description
Pleated Panel Filters consist of a dry non-woven fabric media which is pleated to give an extended surface area, producing a low initial resistance for the same air volume, making this an energy efficient filter. The pleat is supported by an expanded galvanised steel mesh.
The pleated air filter media is contained within the air filter by a rigid all-cardboard casing, or a cardboard frame with recycled perforated cap-punch retaining grids. The filter is sealed together using hot melt adhesive glues to ensure a highly rigid and quality disposable panel air filter.
The Pleated Panel Air Filter Media is available sealed into a galvanised steel metal frame for high humidity applications such as supply air from atmosphere where standard cardboard filters may lose their rigidity and fail.
Technical
The pleated air filter media is Flame Retardant to UL Class II
Max Operating Temp 80 Deg C
Dust Holding Capacity for 50mm Filter = 840 g/m2
Dust Holding Capacity for 100mm Filter = 1260 g/m2
Nominal to Actual Size: less 6mm on H & W, 3mm on Depth
Rated Air-flows based on Face Velocities : 22mm = 2.0m/s, 47mm = 2.5m/s, 97mm = 3.0m/s
Clean Pressure Drops at Rated Air-flows : 22mm = 75Pa, 47mm = 75Pa, 97mm = 75Pa
