FIS-KPLS
FISolution

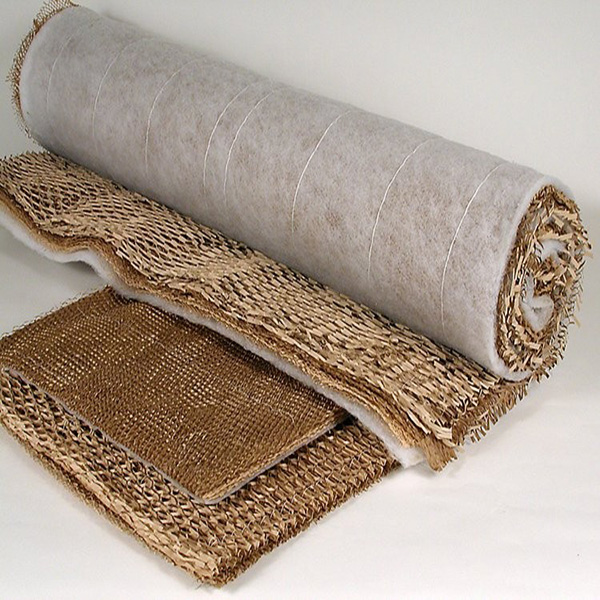

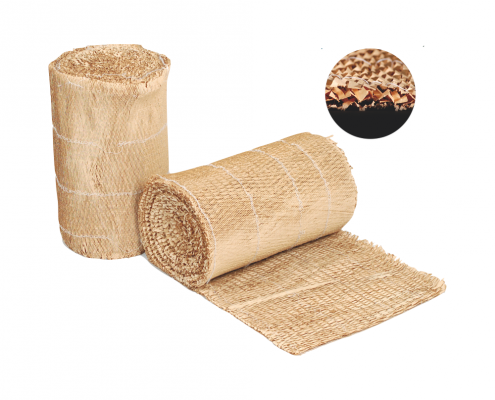

Kolossus Paper Filter
Feature techniques
Application:Filter for varnishing, lacquer application, etc., in dry filtration booths.Spray Booths
Type: Pre-cut cardboard extraction filter for painting booths.
Media: Assembled Kraft paper layers creating a multi-stage collection system. A synthetic material can also be incorporated, which is designed for dry products.
Maximum Pressure Loss: 147 Pa.
Temperature: 80ºC.
Standard: Multipurpose filter and very effective. It adapts very well in cases of multiple sprays and is composed of an ultra-thin mesh of 1.2mm.
High Capacity: It is constructed of two reinforced layers of 120g/m2, 5 standard layers of 70g/m2 and and ultra-thin mesh of 1.2mm. It guarantees excellent efficiency and long durability.
Euro-Supra II: It adds a synthetic final layer and adapts easily to different filtration situations and to any cabin mode. It is recommended in case of transformation of water curtain booth.
Euro-Supra High Capacity: It consists of 10 layers of paper and synthetic final layer, three layers of High Capacity 120g/m2, four layers Kraft paper structure. It is characterized by its high loading capacity and filtration efficiency.
Reference:
Reference | Model | Dimensions | Thickness | Composition | Retention | Area roll | V.Nominal | Weight | UxP* | Stock* |
STAR-0,72/12 | NT | 12x0,73 | 10 | 6 Kraft Layer | 4-6 | 8,76 | 0,75-1/8-12 | 3,15 | 1 | F |
STAR-1,07 | NT | 12x1,07 | 10 | 6 Kraft Layer | 4-6 | 12,84 | 0,75-1/8-12 | 4,62 | 1 | F |
ST-0,73/12 | STANDARD | 12x0,73 | 10 | 6 Kraft Layer | 4-6 | 8,76 | 0,75-1/8-12 | 3,15 | 1 | F |
ST-0,82/12 | STANDARD | 12x0,82 | 10 | 6 Kraft Layer | 4-6 | 9,84 | 0,75-1/8-12 | 3,54 | 1 | F |
ST-1.07/12 | STANDARD | 12x1,07 | 10 | 6 Kraft Layer | 4-6 | 12,84 | 0,75-1/8-12 | 4,62 | 1 | F |
HC-0,73/12 | HIGH CAPACITY | 12x0,73 | 16 | 8 Kraft Layer | 12-15 | 8,76 | 0,75-1/8-12 | 3,68 | 1 | F |
HC-0,82/12 | HIGH CAPACITY | 12x0,82 | 16 | 8 Kraft Layer | 12-15 | 9,84 | 0,75-1/8-12 | 4,13 | 1 | F |
HC-1.07/12 | HIGH CAPACITY | 12x1,07 | 16 | 8 Kraft Layer | 12-15 | 12,84 | 0,75-1/8-12 | 5,39 | 1 | F |
ES2-0,73/12 | EURO-SUPRA II | 12x0,73 | 12 | 5 Kraft Layer+1 Polyester | 6-8 | 8,76 | 0,75-1,5/22,5-31 | 3,33 | 1 | F |
ES2-1.15/12 | EURO-SUPRA II | 12x1,15 | 12 | 5 Kraft Layer+1 Polyester | 6-8 | 13,8 | 0,75-1,5/22,5-31 | 5,24 | 1 | F |
ESHC-0,73/12 | EURO-SUPRA H.CAP. | 12x0,73 | 18 | 7 Kraft Layer+1 Polyester | 12-15 | 8,76 | 0,75-1,5/22,5-31 | 3,59 | 1 | F |
ESHC1.15/12 | EURO-SUPRA H.CAP. | 12x1,15 | 18 | 7 Kraft Layer+1 Polyester | 12-15 | 13,8 | 0,75-1,5/22,5-31 | 5,66 | 1 | F |
UxP (*) | Stock |
