FIS-FGPS
FISolution

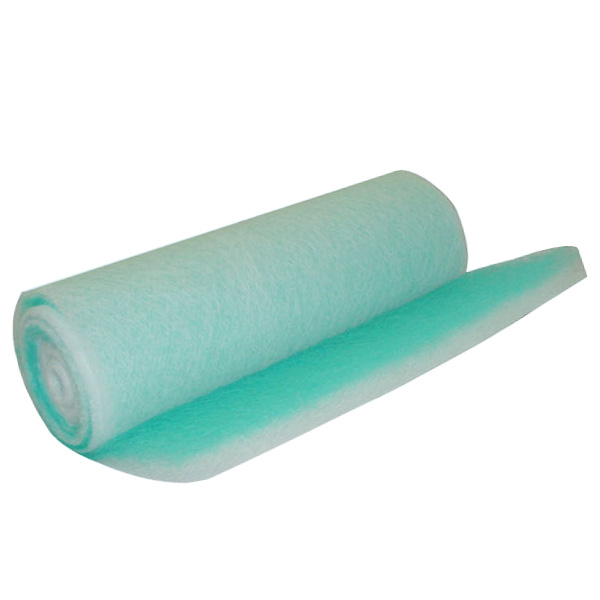

Fiberglass Paint Stop
Product Features
Application：
This product is composited of continuous monofilament glass fiberglass and it is progressively encrypted from the inlet side to the outlet side in fluffy state.
Type：
PA-50/PA-100
Filter material：
It is used in heat recovery systems and high-quality paint mist filtration of surface coating with the high rate of capturing particles and long life-cycle. The inlet side is green, outlet side is white with good compressibility properties to ensure its stability and strong nature and to ensure that filter is not loose, scattered, and more conducive to store mist and dust.
Characteristics：
Temperature resistance: 170 ℃
Conforming to the European DIN53438-F1
The average mist capturing rate: 93-97%
Technical Parameters
Type | Average | Nominal | Rated | Initial | Final | Dust Holding | Thickness (mm) | Sizes |
PA-50 | 93% | 2.5 | 9000 | 20 | 150 | 3500 | 50 | 0.8*20 M |
1.0*20 M | ||||||||
2.0*20 M | ||||||||
PA-100 | 98% | 2.0 | 7200 | 25 | 200 | 4700 | 100 | 0.8*20 M |
1.0*20 M | ||||||||
2.0*20 M |
