FIS-MBFC
FISolution

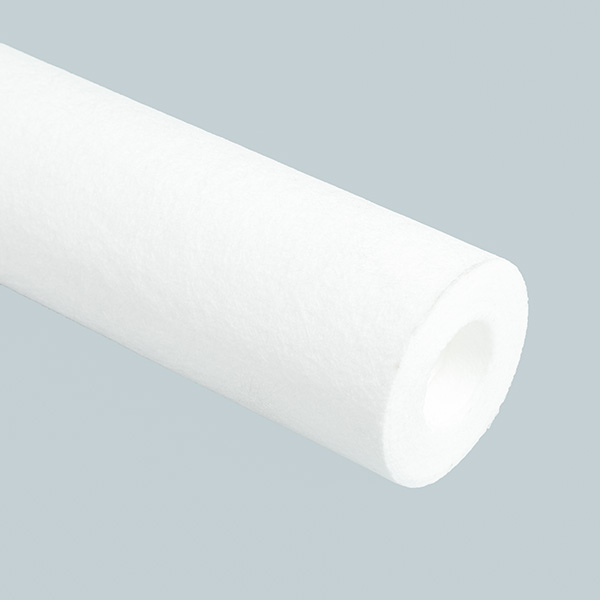

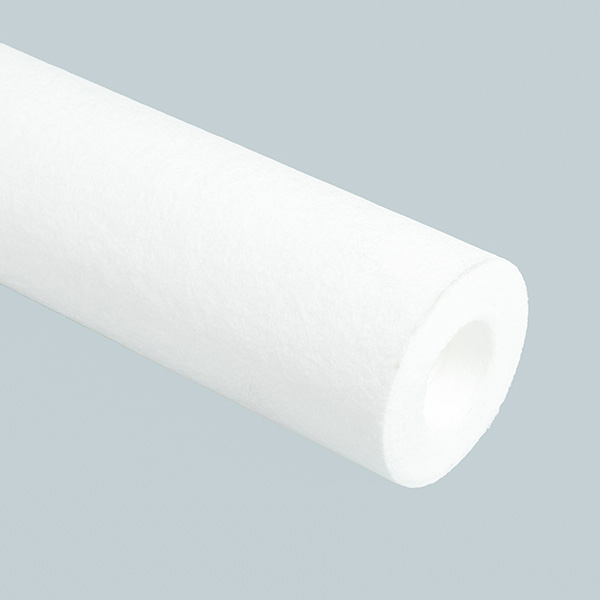

Melt Blown Cartridges
Melt Blown Cartridges are manufactured from 100% Polypropylene construction. They offer excellent filtration and good thermal stability. The unique density gradient construction maximizes efficiency and minimizes pressure drop. This filter will not impart taste, odor, or color to the filtered product and has superior chemical resistance for process fluid applications. Optional Grooving effectively doubles the surface area providing lower clean pressure drop, increased dirt holding capacity and longer life. Cartridges are available in various sizes, micron ratings, and end treatments.
The MBG Series filters are gradient-density, grooved melt-blown cartridges manufactured from FDA-graded polypropylene. A cut groove process maintains open pore construction, doubling usable surface area. They are available in 1 to 50-micron and 10 and 20-inch lengths, with optional end treatments.
MELT BLOWN SEDIMENT FILTERS
The Melt Blown Cartridges is manufactured from 100% Polypropylene construction offering excellent filtration and good thermal stability. The unique density gradient construction maximizes efficiency and minimizes pressure drop. This filter will not impart taste, odor, or color to the filtered product and has superior chemical resistance for process fluid applications. Grooving option effectively doubles the surface area providing lower clean pressure drop, increased dirt holding capacity and longer life. All these qualities resulting in a lower cost of ownership.
Cartridges are available in one to 50-micron ratings, 2.5-inch and 4.5-inch outside widths and 4-inch to 50-inch lengths, and various end cap configurations (see below) for a broad array of applications.
Applications:
• Pre Filters for Reverse Osmosis Filters
• Home Water Filtration
• Swimming Pools
• High Efficiency
Specifications:
Construction: 100% Polypropylene Media
Maximum Temperature: 180ºF (4.4ºC)
Micron Rating: One to 50-micron ratings
Maximum Differential Pressure: 50 PSID
Note: Custom lengths on request.
MELT BLOWN GROOVED SEDIMENT FILTERS
Multi-layered graded density grooved polypropylene filters are ideally suited removal of sand, silt, dirt and rust particles. Materials meet FDA specifications and are specially constructed to preclude downstream contaminate. Grooving effectively doubles the surface area providing lower clean pressure drop, increased dirt holding capacity and longer life. All these qualities resulting in a lower cost of ownership. Cartirdges are available in 1, 5, 10, 25 and 50 micron nominal filtration, both in standard 2.5-inch and big blue 4.5-inch outside diameters and 5-inch, 10-inch" and 20-inch lengths.
Applications:
• Potable Water
• Beverage
• Pre Filters for Reverse Osmosis Filters
• Fine Chemicals
• Metal Finishing
• Plating Solutions
Packaging:
Standard, 2.5 inches OD x 9.875 inches
50 per case
Big blue. 4.5 inches OD x 9.875 inches
24 per case

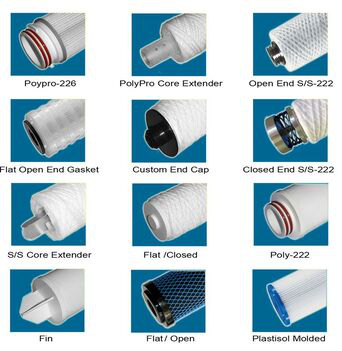

Choice of end caps
We provide 12 different end caps to all of their filter lines. The diversity of these end caps provides an endless variety of filtration needs for every industry.
We can provide the following end caps:
Polypro-226
PolyPro Core Extender
Open End Stainless Steel-222
Flat Open End Gasket
Custom End Cap
Closed End Stainless Steel-222
Stainless Steel Core Extender
Flat / Closed
Poly-222
Fin
Flat / Open
Plastisol Molded
