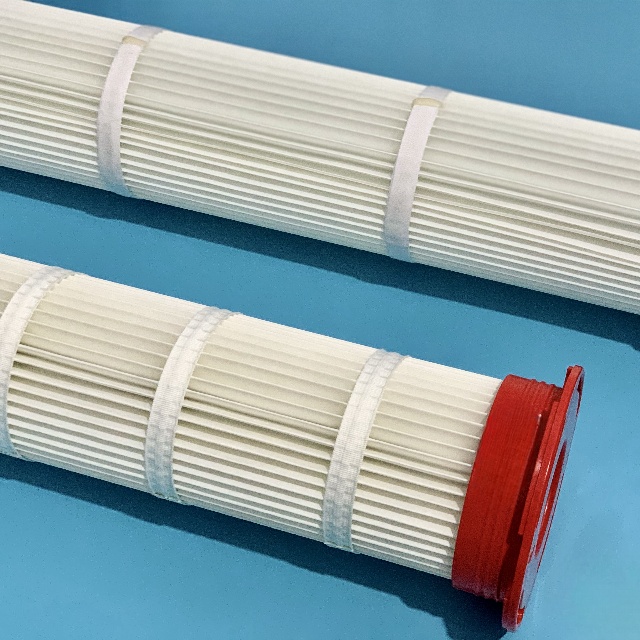

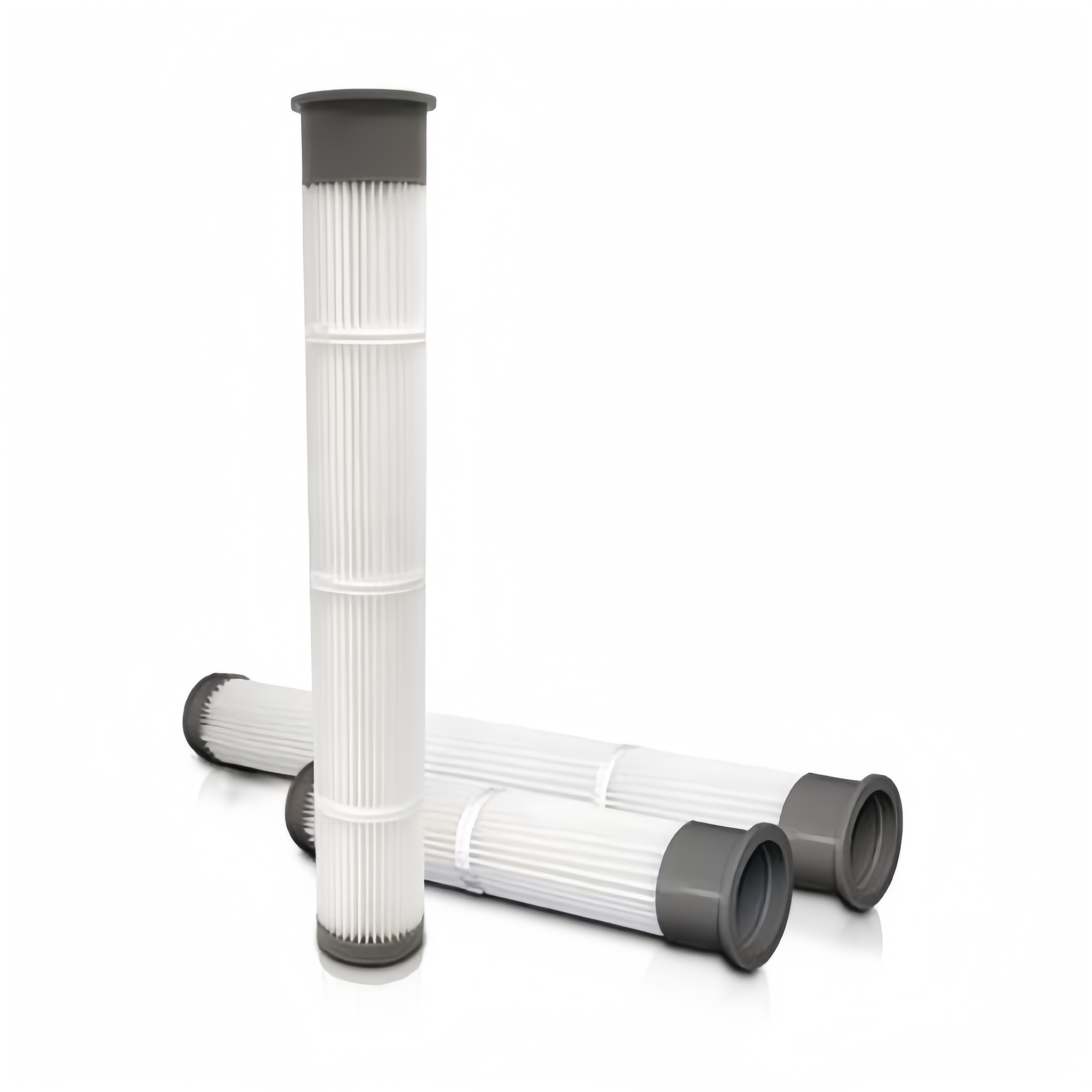

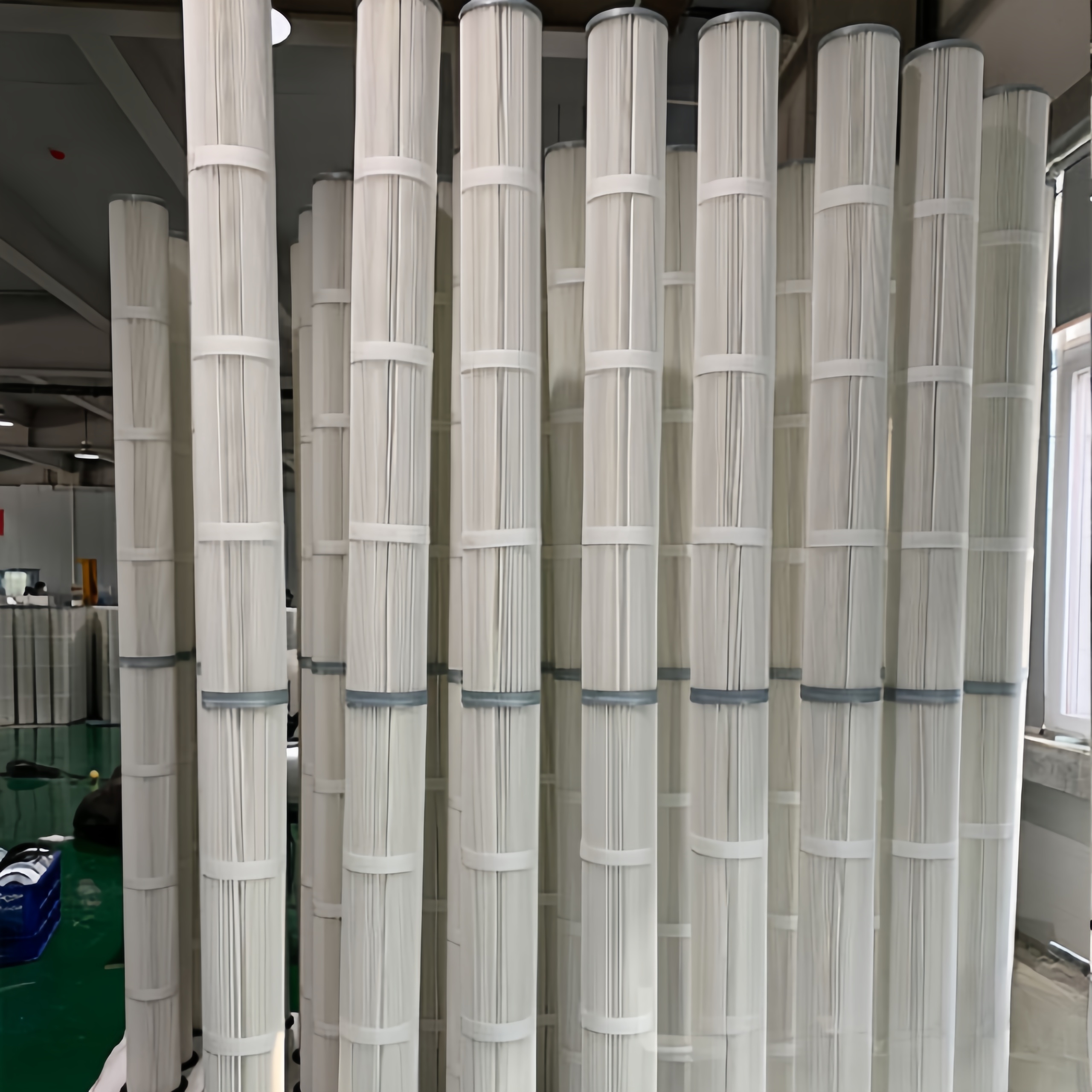

Pleated Filter Sleeve/Cartridge

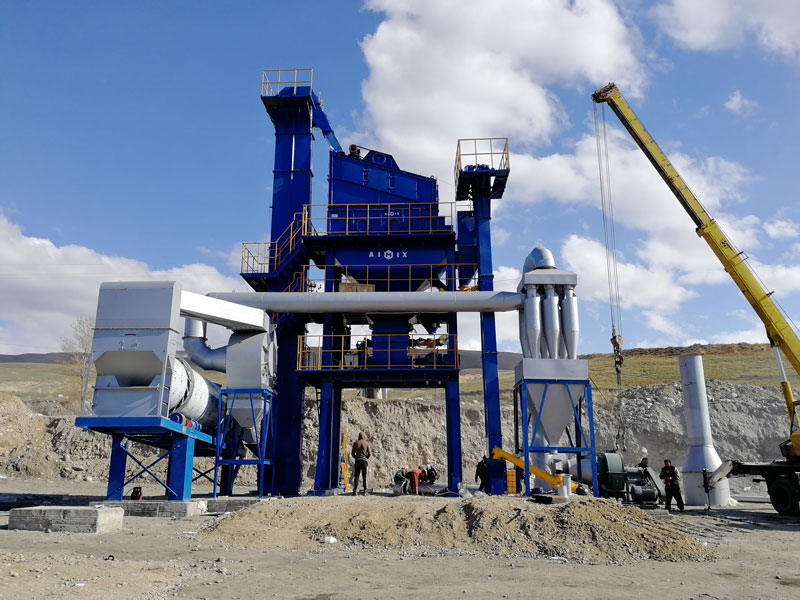

This pleated filter cartridge/element are more resistant ,have a new and more efficient rubberized seal,low atmospheric emissions and easier maintenance.It is popular to be used for ASPHALT PLANT

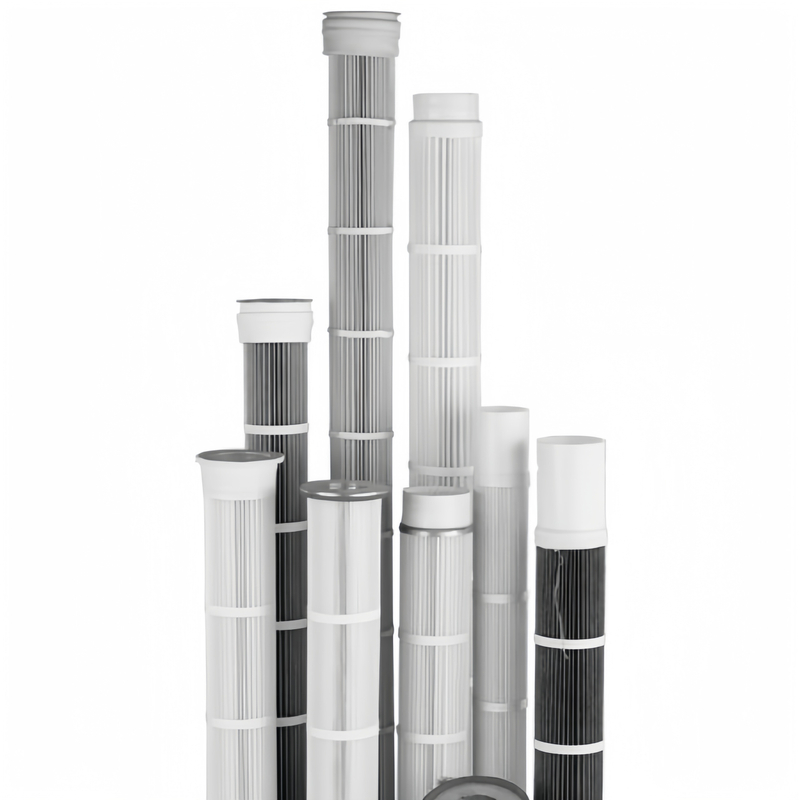

Fisolution offers virtually all types of replacement filter bags ,sleeves and support cages for dust collectors and filtration equipment for any type, size, style or manufacturer. Filter medias offered include cotton, polyester, polypropylene, P-84 laminates, PTFE membrane and ryton, to name a few.
Pleated filter bags and cartridges offer an alternative to optimizing your current dust collector or pneumatic receiver. They will also provide better filtration efficiencies over bags in most applications providing three to five times the filtration surface area. Additionally, pleated bags and cartridges are easier to clean than conventional filter bags because they are surface loaded, meaning the dust particles do not penetrate the media surface. Surface loading also reduces the pressure drop making pulse cleaning more efficient and economical to operate.
Replacement filter bags, cages and cartridge filters for horizontal and vertical dust collectors and pneumatic receivers for other OEM units can be purchased .
All filter bags and cartridge ,sleeves filters meet or exceed government requirements and industry standards.
The technical data sheet is as follows :
Description | D142×L2000 mm-6.2 m2-Rubber Cup with Snap band *NOTE: This type of filter is exclusively for fitting into a mirror hole with a diameter of 160.0 to 162.0 mm. |
Dimensions | Diameter:142.0 mm Height: 2000 mm 55 pleats 28.0 mm deep |
Area filter | 6,2 m² |
Filter media | Spunbonded polyester 280 g/m2 /in colours to be determined |
Permeability | 110 CFM |
Efficiency | 99 % (particles above 0.2 μm) |
Particulate Emission<50 mg/Nm³ | |
Sealing | 30mm spring steel pressing the top of the rubber (Snap Band) |
Internal structure | Galvanised perforated sheet pipe |
30 μm galvanisation | |
Top | 02 welded parts made of carbon steel |
Vulcanised rubber | |
Reinforcement | 07 aluminium separator rings with Ecofil coating |
Adhesive | Two-component polyurethane |
Type of resin | PU-A/B-HT |
Bottom cover finish | Electrostatic painting 180 μm |
Working temperature temperature | Maximum:120℃ |
Temperature indicator | Maximum temperature reached indicator strip |
Cleaning pressure | Maximum:5 bar |
