Filter Screen Mesh

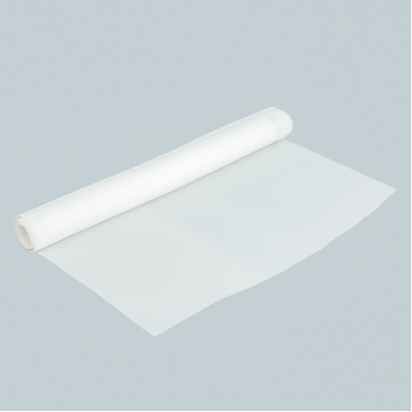

Micron nylon filter mesh is made of PA6 or PA66 monofilament yarn in plain weave or twill weave. It has smooth surface, uniform structure and ranges of mesh counts for industrial, medical and other filtration applications.

Material:	Nylon Polyester
Width:	100mm 127mm 165mm
Micron:	1~1500um

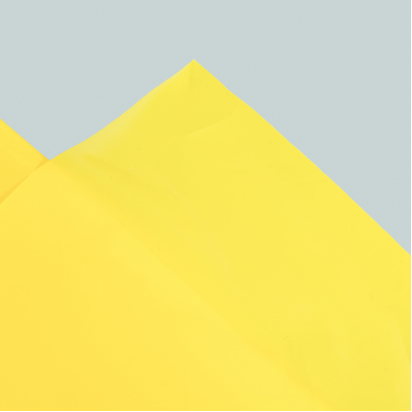

Color:	White Yellow
Availability:



Inquire Add to Basket

Model:
FIS-NMO3300
Brand:
FISolution

Product Description

NYLON FILTER MESH – UNIFORM OPENING & RANGES OF FILTRATION FINENESS

Nylon filter mesh is made of PA6 or PA66 monofilament yarn in plain weave or twill weave. It has smooth surface, uniform structure and ranges of mesh counts for industrial, medical and other filtration applications.

1~1500micron for different filtration requirements.
Available for filter disc, filter tube, filter belt and filter bags.
Plain weave or twill weave options.
Excellent in liquid, powder, dust, gas and other element filtration.
Alternative to polyester (PA) filter mesh.

ADVANTAGES

High mechanical strength and flexibility.
Fatigue resistance.
Available in disc, tube, bag and special shapes.
Abrasive and corrosive resistance.
Heat-melting resistance.
Wide ranges of mesh counts for choice.
Available for water, air, oil, paint, powder filtration.
Compliance with FDA food grade.

APPLICATIONS

Air purifier filter
Air conditioner filter
Circulating/waster water filter
Blood filter transfusion
Wound care
Injector filtration
Coffee filter
Biopsy bag
Milling mesh
Test/sample sieve

DIMENSIONS

Material: monofilament nylon wire PA6 or PA66.
Weaving method: plain weave or twill weave.
Mesh size: 5 mesh to 236 mesh.
Width: 115/127/145/165 cm and maximum is 365 cm.
Length: 30–100 m and customized lengths
NYLON FILTER MESH TECHNICAL DATA

Item	Mesh Count		Thread Diameter	Mesh Opening	Open Area	Fabric Thickness	Weight
Item	mesh/cm	mesh/inch	μm	μm	%	μm	g/m2
NMO12-550	5	12	550	1500	56	850	271
NMO16-400	6	16	400	1267	58	780	208
NMO18-350	7	18	350	1079	57	675	186
NMO20-350	8	20	350	900	52	685	212
NMO24-250	9	24	250	800	58	455	145
NMO25-250	10	25	250	750	52	460	165
NMO30-300	12	30	300	533	41	585	234
NMO30-250	12	30	250	600	50	470	162
NMO35-250	14	35	250	464	34	595	273
NMO40-250	16	40	250	375	36	485	217
NMO40-200	16	40	200	400	44	370	139
NMO50-200	20	50	200	300	36	385	173
NMO50-150	20	50	150	350	49	375	98
NMO60-150	24	60	150	250	40	385	117
NMO70-150	28	70	150	207	44	215	87
NMO76-120	30	76	120	200	39	225	94
NMO80-100	32	80	100	215	47	165	69
NMO90-100	36	90	100	180	42	178	78
NMO100-100	40	100	100	150	36	190	87
NMO110-80	43	110	80	152	43	135	60
NMO120-80	48	120	80	130	38	145	67
NMO140-60	56	140	60	120	44	85	44
NMO150-60	59	150	60	110	42	98	46
NMO160-60	64	160	60	100	37	105	50
NMO180-50	72	180	50	90	41	82	39
NMO200-50	80	200	50	75	36	90	43
NMO230-40	90	230	40	70	40	65	30
NMO250-40	100	250	40	60	36	65	35
NMO280-40	110	280	40	50	30	67	38
NMO305-40	120	305	40	43	25	70	42
NMO330-40	130	330	40	37	23	75	45
NMO355-37	140	355	37	34	20	68	43
NMO400-39	157	400	39	25	15.4	74	52
NMO157-TW	157	400	39	25	15.7	74	52
NMO169-TW	169	430	39	20	11.4	74	56
NMO185-TW	185	470	39	15	7.7	74	61
NMO208-TW	208	530	39	10	4.32	74	69
NMO220-TW	220	560	39	7	2.37	74	73

POLYESTER FILTER MESH FOR AIR & WATER FILTRATION & PURIFICATION

Polyester filter mesh is made of 100% polyester monofilament yarn, which is woven into mesh fabrics. Polyester filter mesh is an alternative to nylon filter mesh, which is widely used in medical, industrial, automotive, milling and water industries.

1~1500micron for different filtration requirements.
Available for filter disc, filter tube, filter belt and filter bags.
White, yellow, black and other customized colors.
Ideal for commercial and industrial filtration and separations.
Excellent in liquid, powder, dust, gas and other element filtration.

ADVANTAGES

Acid and alkali resistance
High temperature resistance
Easy cleaning
Easy to install and replace
High tensile strength
Even mesh and accurate filtration

APPLICATIONS

Air purification
Water filtration
Dust filtration
Paint coating filtration
Medical filtration
Automobile filtration

DIMENSIONS

Material: 100% monofilament polyester wire.
Mesh Count Range: 10–420 mesh/inch.
Weaving method: plain weave, twill weave, dutch weave.
Width: 115/127/145/165 cm and maximum is 365 cm.
Length: 30–100 m and customized lengths.
Color: white, black, yellow and customized colors.

SPECIFICATIONS OF POLYESTER FILTER MESH

Specification	Mesh Count	Thread Diameter	Aperture	Opening	Thickness	Air permeability	Tensile Strength
Specification	mesh/inch	micron	micron	%	micron	cm3/m2	N/cm
10-200	25	200	816	65	440	276	42
10-250	25	250	740	53	465	246	60
12-200	30	200	522	47	485	228	62
16-200	40	200	435	47	420	189	48
20-140	50	140	340	46	280	129	52
20-180	50	180	320	41	350	152	56
24-100	60	100	316	58	190	109	48
24-120	60	120	300	51	210	105	42
32-100	80	100	200	43	160	69	42
36-100	90	100	178	41	175	72	42
39-55	100	55	201	62	100	62	30
39-80	100	80	172	46	142	65	42
43-80	110	80	150	41	130	55	35
48-70	120	70	135	41	115	46	32
53-55	135	55	134	50	105	53	34
54-64	137	64	115	39	102	40	30
59-55	150	55	100	40	93	39	32
64-55	160	55	101	42	105	44	30
64-64	160	64	90	32	106	34	35
72-48	180	48	94	46	80	37	32
72-55	180	55	75	29	92	27	32
77-55	195	55	70	25	88	24	29
80-48	200	48	78	30	84	24	29
80-55	200	55	70	25	88	24	29
90-48	230	48	55	25	78	20	33
100-40	250	40	58	32	65	21	29
110-40	280	40	48	27	65	17	30
120-34	300	34	45	30	55	16	30
120-40	300	40	40	20	55	16	29
140-31	350	31	35	26	48	13	27
140-34	350	34	30	20	55	10	30
150-31	380	31	32	23	47	10	28
150-34	380	34	30	20	69	10	30
165-31	420	31	25	17	49	8	28

Filter Screen Mesh Nylon mesh Polyester mesh
